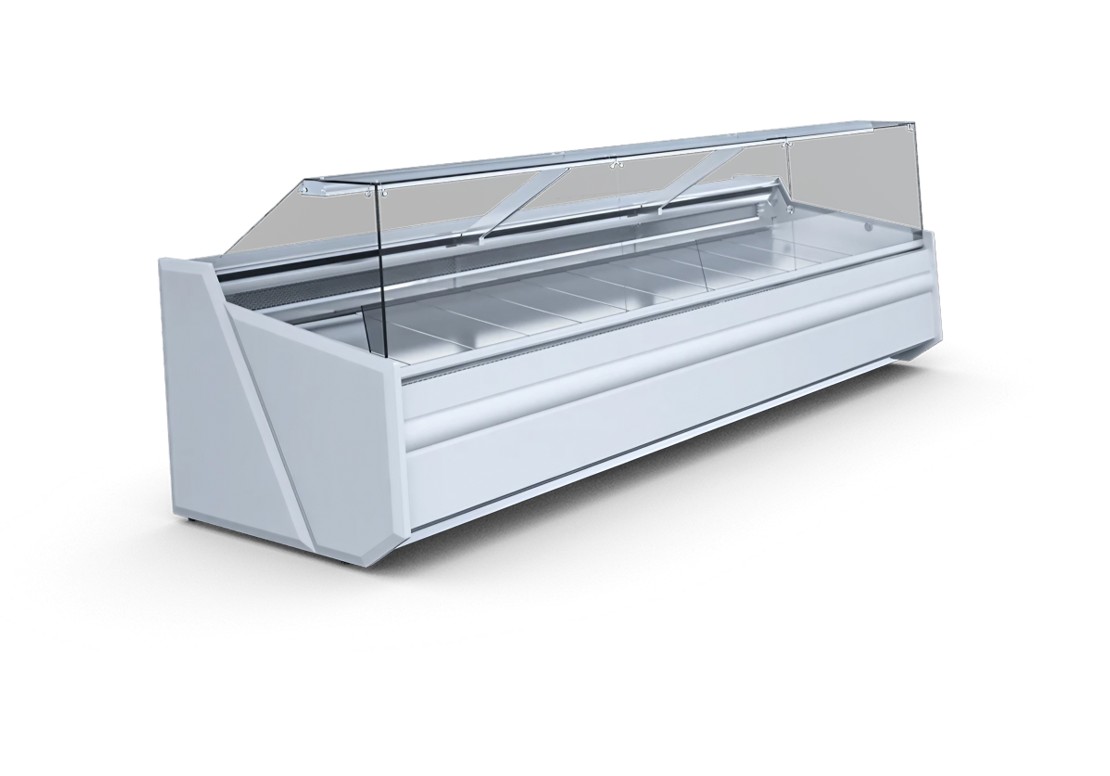

Luzon Meat
• Static cooling
• 13AMP supply
• Electronic temperature controller with digital display
• Exterior powder coated white paint with grey trim
• Refrigerated under storage
• BA200M, BA201M have 1x under storage door
• BA202M, BA203M, BA205M, BA206M have 2x under storage doors
• White powder painted display decking
• Stainless steel worktop
• White LED lighting
• Automatic defrost
• Straight front glass
• Compressor on built in rails for easy servicing
• Ambient intermediate glass shelf
• Sides with ABS with polyurethane
• Sliding rear perspex doors
• Front glass defogger
• Different colour options available (colour guide)
• Adjustable legs
• Suitable for use in ambient temp. up to 25°C & 65% RH
DATA SHEET:
MANUAL: 🔧

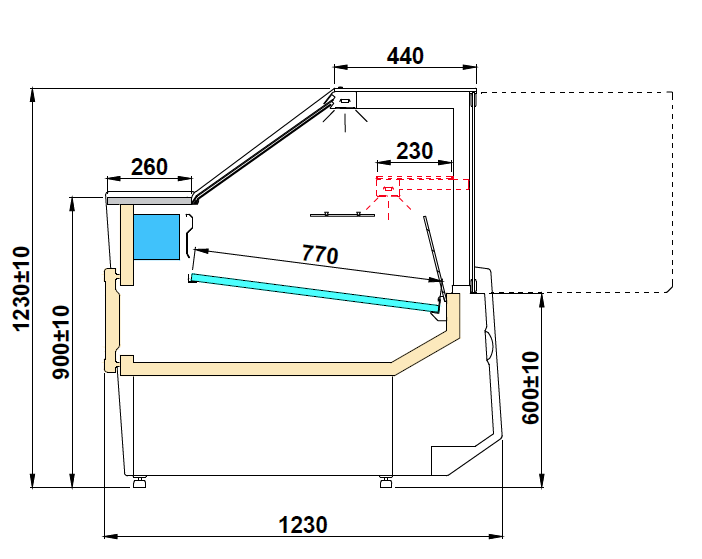

| Model | Width (mm) | Height (mm) | Depth (mm) | Temp. Range (°C) | Power (W) | Weight (kg) | Energy Consumption | Refrigerant | Auto Defrost | RRP |
| BA200M | 1020 | 1230±10 | 1180 | -2/+4 | 287 | 140 | 5.2 (kWh/24h) | R290 | Yes | £4,018 |
| BA201M | 1330 | 1230±10 | 1180 | -2/+4 | 290 | 160 | 6.5 (kWh/24h) | R290 | Yes | £4,485 |
| BA202M | 1645 | 1230±10 | 1180 | -2/+4 | 365 | 190 | 6.6 (kWh/24h) | R290 | Yes | £5,171 |
| BA203M | 1960 | 1230±10 | 1180 | -2/+4 | 435 | 215 | 9.9 (kWh/24h) | R290 | Yes | £6,090 |
| BA204M | 2580 | 1220±10 | 1180 | -2/+4 | 599 | 290 | 10.3 (kWh/24h) | R290 | Yes | £7,544 |
| BA205M | 3210 | 1230±10 | 1180 | -2/+4 | 677 | 340 | 14.6 (kWh/24h) | R290 | Yes | £9,496 |
| BA206M | 3830 | 1230±10 | 1180 | -2/+4 | 940 | 390 | 17.8 (kWh/24h | R290 | Yes | £10,800 |
| Optional Extras | 30mm Grey granite worktop (per meter) £160 Moveable partition (low glass on stand) £100 Different front panel colour (per meter) £140 Castors (per meter) £320 Fixed glass partition (high glass on deck) (per meter)£120 Small moveable scale table for scales or cash register £290 230V socket £50 Additional LED light on the front base panel (per meter) £120 |
|---|
