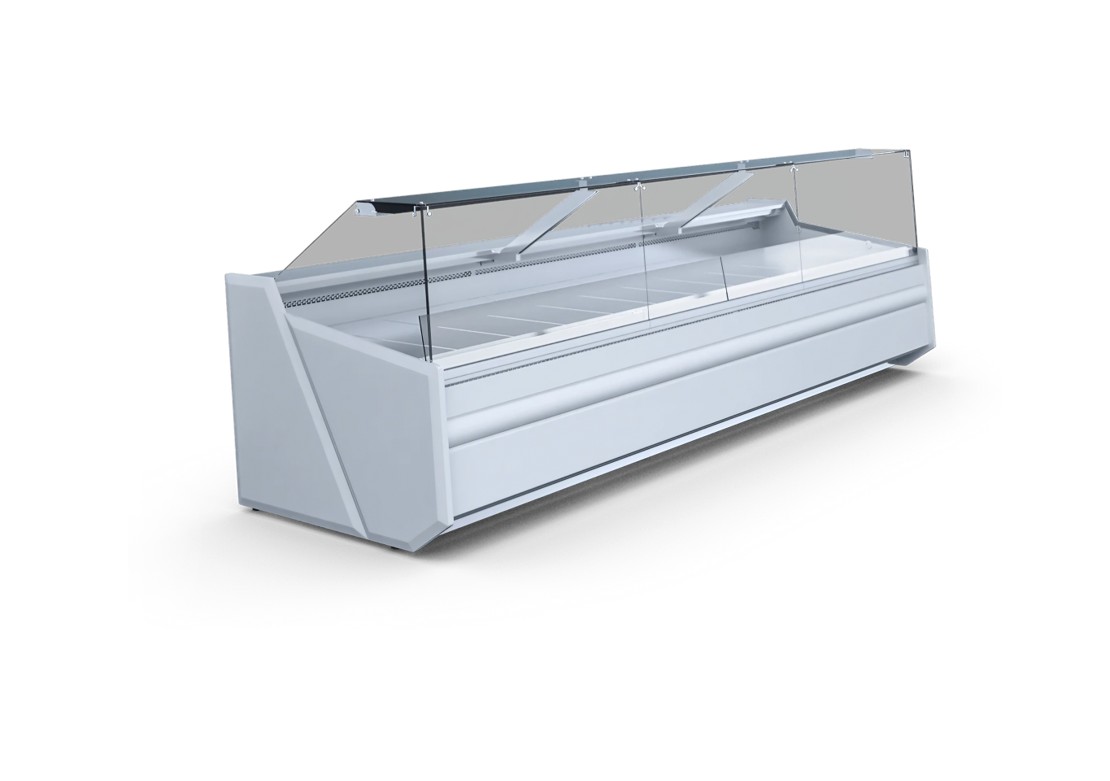

Luzon Deep Meat
• Ventilated cooling
• 13AMP supply
• Electronic temperature controller with digital display
• Exterior powder coated white paint with grey trim
• Refrigerated under storage
• BA220WGM, BA230WGM have 1x under storage door
• BA240WGM, BA250WGM, BA260WGM, BA270WGM, BA280WGM have 2x under storage doors
• White powder painted display decking
• Stainless steel worktop
• White LED lighting
• Automatic defrost
• Straight front glass
• Compressor on built in rails for easy servicing
• Ambient intermediate glass shelf
• Side with ABS with polyurethane
• Sliding rear perspex doors
• Front glass defogger
• Different colour options available (colour guide)
• Adjustable legs
• Suitable for use in ambient temp. up to 25°C & 65% RH
DATA SHEET:
MANUAL: 🔧
|
Model |
Width (mm) |
Height (mm) |
Depth (mm) |
Temp Range (°c) |
Power (w) |
Weight (kg) |
Voltage |
Energy Consumption |
Refrigerant |
Auto Defrost |
RRP |
|
BA220WGM |
1020 |
1220+/-10 |
1180 |
-2/+4 |
287 |
140 |
230/50HZ |
4.0 (kWh/24h) |
R290 |
Yes |
£4093 |
|
BA230WGM |
1330 |
1220+/-10 |
1180 |
-2/+4 |
290 |
160 |
230/50HZ |
4.1 (kWh/24h) |
R290 |
Yes |
£4713 |
|
BA240WGM |
1645 |
1220+/-10 |
1180 |
-2/+4 |
365 |
190 |
230/50HZ |
5.1 (kWh/24h) |
R290 |
Yes |
£5560 |
|
BA250WGM |
1960 |
1220+/-10 |
1180 |
-2/+4 |
435 |
215 |
230/50HZ |
6.1 (kWh/24h) |
R290 |
Yes |
£6591 |
|
BA260WGM |
2580 |
1220+/-10 |
1180 |
-2/+4 |
599 |
290 |
230/50HZ |
8.4 (kWh/24h) |
R290 |
Yes |
£8077 |
|
BA270WGM |
3210 |
1220+/-10 |
1180 |
-2/+4 |
677 |
340 |
230/50HZ |
9.5 (kWh/24h) |
R290 |
Yes | £9935 |
|
BA280WGM |
3830 |
1220+/-10 |
1180 |
-2/+4 |
940 |
390 |
230/50HZ |
13.2 (kWh/24h |
R290 |
Yes | £11177 |
| Optional Extras | 30mm Grey granite worktop (per meter) £160 Moveable partition (low glass on stand) £100 Different front panel colour (per meter) £140 Castors (per meter) £320 Fixed glass partition (high glass on deck) (per meter)£120 Small moveable scale table for scales or cash register £290 230V socket £50 Additional LED light on the front base panel (per meter) £120 |
|---|
