Basia NEO Fish
• Static Cooling
• 13AMP supply
• Electronic temperature controller with digital display
• Exterior powder coated white paint with grey trim
• Refrigerated under storage
• BASIA110F-NEO, BASIA140F-NEO have 1x under storage door
• BASIA170F-NEO, BASIA210F-NEO, BASIA250F-NEO, have 2x under storage doors
• Acid resistant white powder painted display decking
• Stainless steel worktop
• White LED lighting
• Automatic defrost
• Standard colour is white (light grey bumper)

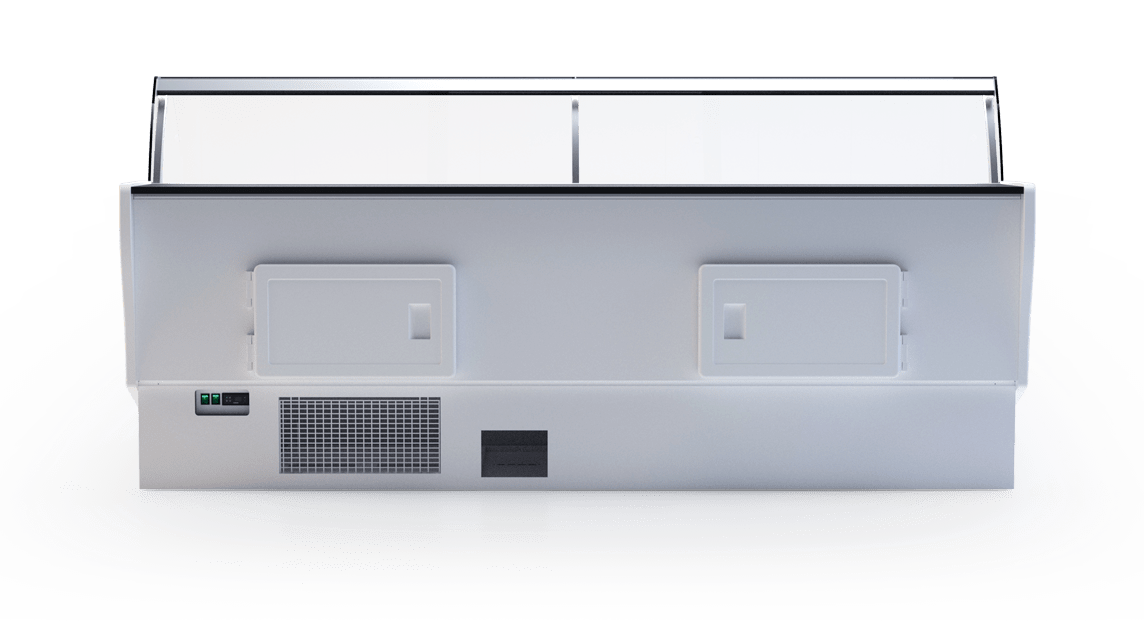

• Compressor on built in rails for easy storage

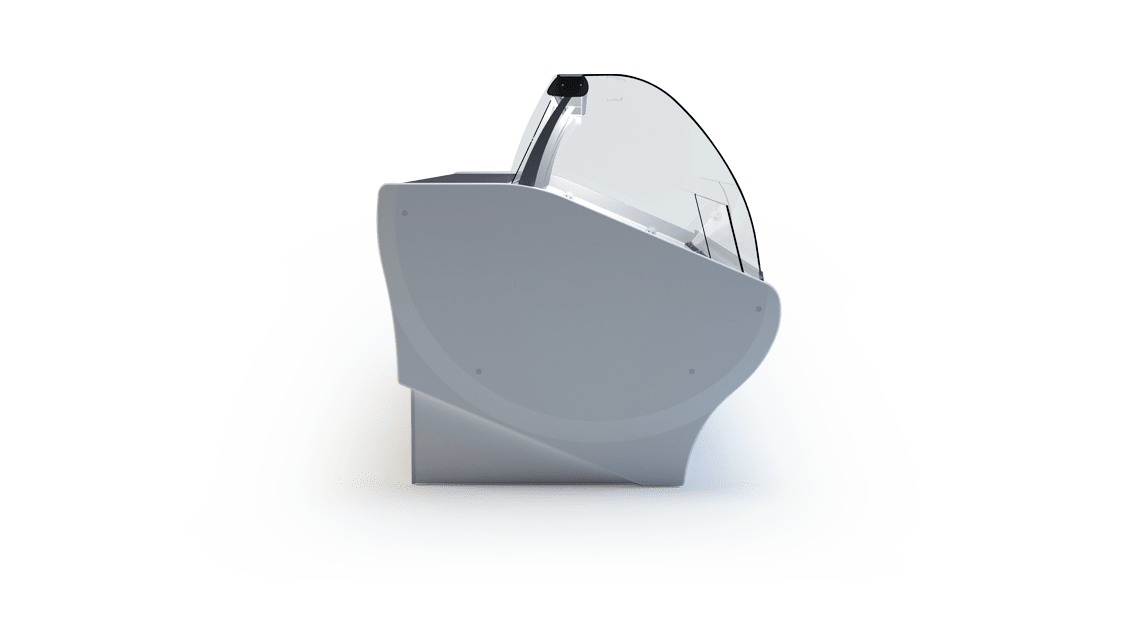

• Sides in ABS with polyurethane (cream colour)
• Sliding rear perspex doors
• Adjustable legs
• Suitable for use in ambient temp. up to 25°C & 65% RH
BROCHURE:
WIRING DIAGRAM:
MANUAL: 🔧

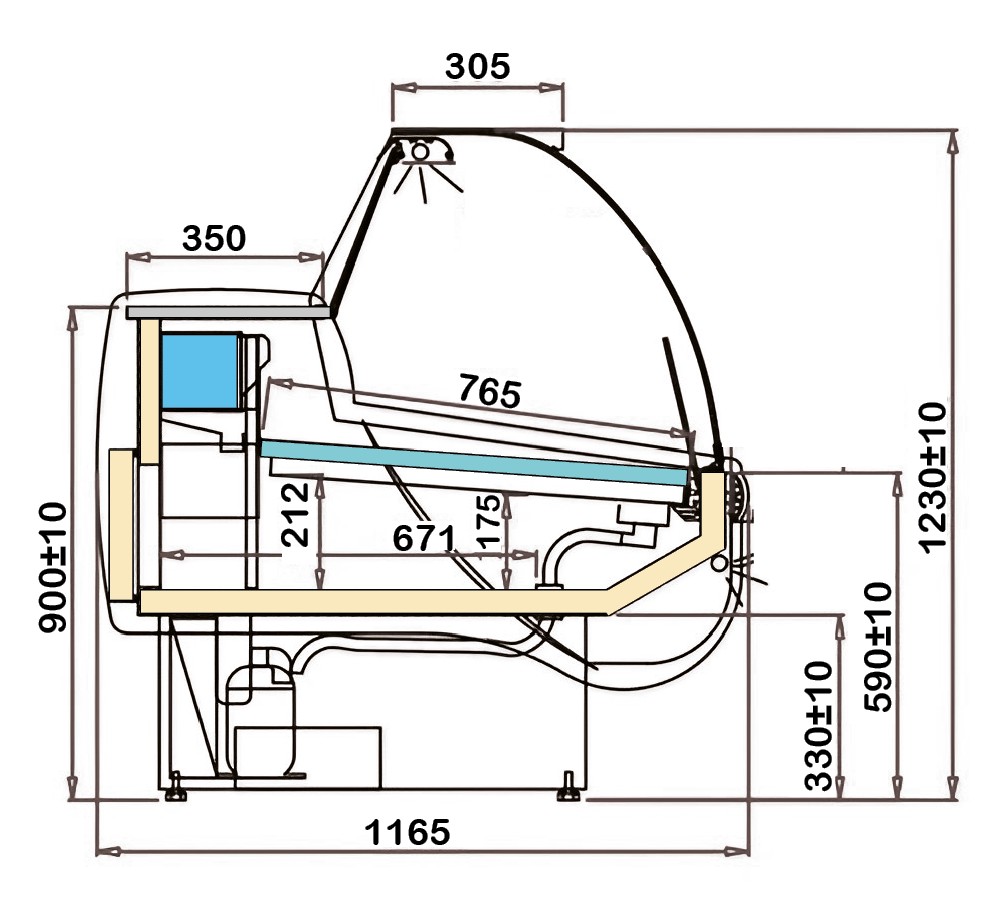

| Model | Width (mm) | Height (mm) | Depth (mm) | Display Area(WxD) mm | Temp. Range (°C) | Power (W) | Weight (kg) | Voltage | Energy Consumption | RRP |
| BASIA110F-NEO | 1020 | 1230±10 | 1165 | 938 x 716 | +1/+10 | 236 | 150 | 230/50Hz | 3.3 (kWh/24h) | £3,980 |
| BASIA140F-NEO | 1330 | 1230±10 | 1165 | 1250 x 716 | +1/+10 | 333 | 175 | 230/50Hz | 4.8 (kWh/24h) | £4,448 |
| BASIA170F-NEO | 1650 | 1230±10 | 1165 | 1563 x 716 | +1/+10 | 341 | 205 | 230/50Hz | 6.4 (kWh/24h) | £5,204 |
| BASIA210F-NEO | 1960 | 1230±10 | 1165 | 1875 x 716 | +1/+10 | 501 | 230 | 230/50Hz | 7.0 (kWh/24h) | £6,030 |
| BASIA250F-NEO | 2580 | 1230±10 | 1165 | 2500 x 716 | +1/+10 | 570 | 300 | 230/50Hz | 8.0 (kWh/24h) | £7,387 |
| Optional Extras | 30mm Grey granite worktop (per meter) £160 Fixed glass partition (high glass on decking) (per meter) £120 Different front panel colour (per meter) £140 Castors (per meter) £320 Small moveable scale table for scales or cash register £290 230V socket £50 Additional LED light on the front base panel (per meter) £120 Additional display glass shelf (per meter)£75 |
|---|
